435 To 1555mm Slab Side Shift Forklift Attachment No Arm Clamps

Name: 435 To 1555mm Slab Side Shift Forklift Attachment No Arm Clamps
Brand: Bonafe
Price: 1 USD

Brand Name : Bonafe

Place of Origin : China

MOQ : 1 Units

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 Unit/Units per Year

Delivery Time : 5-8 work days

product category : Forklift Attachment No-Arm Clamps

Material : Steel

Applicable Industries : Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shop

Opening Range : 435-1555mm

Weight : 207kg

Frame Width : 865mm

Arm Pad Size : 100x535x36mm

Horizontal Center of Gravity : 76mm

Effective Thickness : 122mm

Contact Now

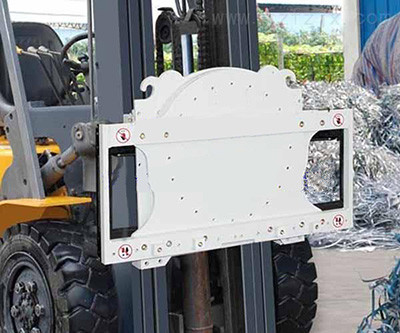

Forklift Attachment No-Arm Clamps Sideshifting

Functions & Applications
No-arm clamp is a kind of clamping device that isn’t equipped with clamp arm, only have the clamp arm base. Users can make special clamp arm according to your special needs, just welding it on no-arm clamp then can be used. Suitable for industry with special requirements for handling and stacking operation.

Features
*  Proven durable T-beam arm aluminum frame construction.
* Superior arm-slide bearing for extended service life..
* Regenerative hydraulic valving for optimal arm speed.
*  Excellent driver visibility.

Options
* Customs opening ranges
*  Various mounting classes available

Parameter

Capacity@ Load Center (Kg@mm)	Model No.	Mounting Class	Opening Range (mm)	Arm Pad Size WxHxT (mm)	Frame Width A (mm)	Vertical Center of Gravity CGV(mm)	Weight (kg)	Effective Thickness ET(mm)	Horizontal Center of Gravity CGH(mm)
Sideshifting
1100@600	CNS15D-001A	II	435-1555	100x535x36	865	210	207	122	76
1600@600	CNS20D-002A	II	410-1660	130x565x40	940	220	232	127	76
2300@600	CNS30D-003A	II	465-1810	130x625x45	1015	255	320	142	89
2300@600	CNS30D-003B	III	465-1810	130x625x45	1015	255	338	150	86

Remark:

1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.

2. Two sets additional oil circuit required on forklift.
3. Opening range refers to inside spacing of arm base of clamp arm.

4.  We can design and manufacture various types of special clamp arm according to user’s condition requirements.

Other size available on request.


Applicable Industries
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shop

Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
