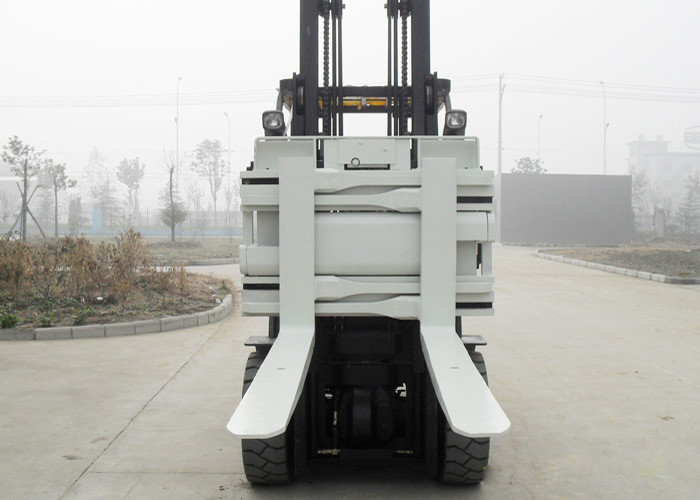

2300kg Forklift Attachments Forklift revolving fork clamp
Product Description
CFR30D-108A Fork Length 1065mm, Frame Width 1015mm, Overall Height 775mm, Vertical Center of Gravity 275mm
CFR30D-108B Fork Length 1065mm, Frame Width 1015mm, Overall Height 775mm, Vertical Center of Gravity 275mm
CFR30D-109A Fork Length 1220mm, Frame Width 1015mm, Overall Height 775mm, Vertical Center of Gravity 270mm
CFR30D-109B Fork Length 1220mm, Frame Width 1015mm, Overall Height 775mm, Vertical Center of Gravity 270mm
Options
* Detachable two barrels of clamp arm
* Detachable four bottles clamp arm
* Detachable rubber pad clamp arm
* Left and right clip arm independent movement type
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Mounting Class | Opening Range
(mm) | Fork
Length
A (mm) | Frame
Width
D(mm) | Overall
Height
H (mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 2300@600 | CFR30D-108A | II | 440-1785 | 1065 | 1015 | 775 | 275 | 685 | 305 | 225 |
| 2300@600 | CFR30D-108B | III | 440-1785 | 1065 | 1015 | 775 | 275 | 704 | 345 | 262 |
| 2300@600 | CFR30D-109A | II | 440-1785 | 1220 | 1015 | 775 | 270 | 695 | 305 | 249 |
| 2300@600 | CFR30D-109B | III | 440-1785 | 1220 | 1015 | 775 | 270 | 712 | 345 | 287 |
Remark:
1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.
2. Two sets additional oil circuit required on forklift.
3. Opening range is the space between two arms tip.
4. Special arm can be added on the fork clamp as required.
5. Provide the different fork demand as required.
Other size available on request.
Installation&Option
Hydraulic Flow&Pressure
| Model | Min.
Hydraulic
Flow(L/min) | Rec.
Hydraulic
Flow(L/min) | Max.
Hydraulic
Flow(L/min) | Min.
Hydraulic
Pressure(Bar) | Max.
Hydraulic
Pressure(Bar) |
| Revolving |
| CFR30D | 20 | 40 | 60 | 35 | 160 |
Rotator Specifications
| Model | Rotator Speed | Rotator Torque |
| CFR30D | 5.2r/min@57L/min | 9000N.m@160Bar |
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Machinery RepairShops, Manufacturing Plant
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
