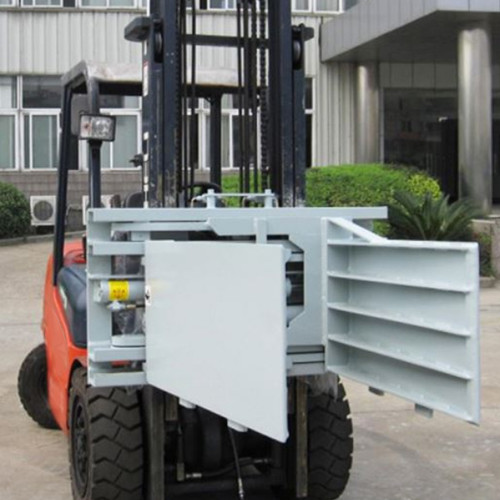

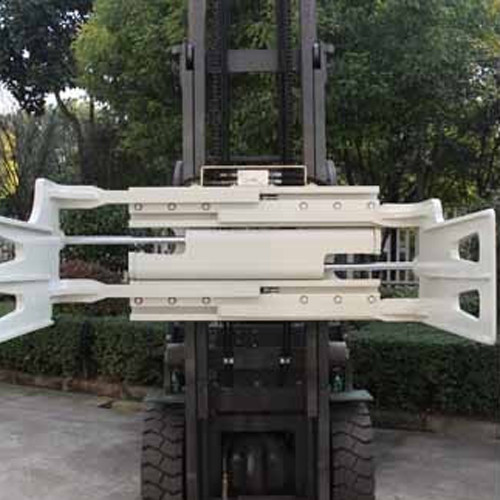

Different Capacity High Quality Forklift Attachment Bale Clamp
Functions & Applications
Bale Clamps has good efficiency, low price and easy maintenance, making it have a very wide range of application scenarios. Bale Clamps are mainly used in the following areas: transportation, aquatic products, metal industry, wood industry, animal husbandry, storage industry, etc.
Options
* Custom opening ranges
* Custom arm sizes
* Various mounting classes available
* Load backrests
* Bolt bale arm

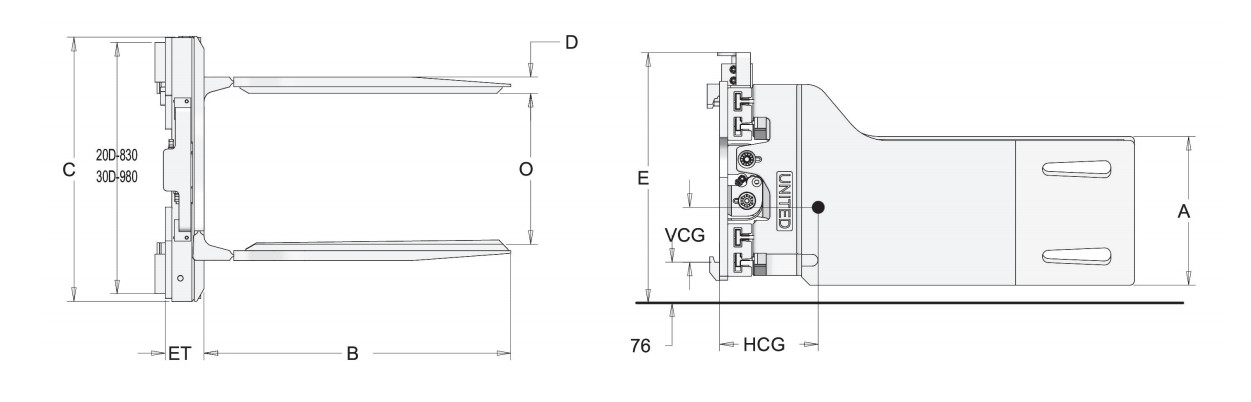

Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Opening Range
O (mm) | Arm Height
A (mm) | Arm
Length
B (mm) | Frame
Width
C (mm) | Arm
Thickness
D (mm) | Overall
Height
E (mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 2200@500 | BCS30D-011B | 490-2300 | 460 | 990 | 1600 | 75 | 730 | 255 | 710 | 150 | 240 |
| 2200@500 | BCS30D-012B | 490-2300 | 460 | 1195 | 1600 | 75 | 730 | 255 | 730 | 150 | 240 |
Remark
1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.
2. Two sets additional oil circuit required on forklift.
3. Open arm range is the space between two arms tip.
4. Arm thickness “D” is the actual requested operation space.
5. Rotating bale clamps choose able.
Applicable Industries
Building Material Shops, Machinery Repair Shops,Metal Industry, Wood Industry
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
